Sharpen Your Knowledge with Cisco CCIE (350-501) Certification Sample Questions
CertsTime has provided you with a sample question set to elevate your knowledge about the Cisco Implementing and Operating Cisco Service Provider Network Core Technologies exam. With these updated sample questions, you can become quite familiar with the difficulty level and format of the real 350-501 certification test. Try our sample Cisco Implementing and Operating Cisco Service Provider Network Core Technologies certification practice exam to get a feel for the real exam environment. Our sample practice exam gives you a sense of reality and an idea of the questions on the actual Cisco Certified Internetwork Expert certification exam.
Our sample questions are similar to the Real Cisco CCIE SPCOR 350-501 exam questions. The premium Cisco Implementing and Operating Cisco Service Provider Network Core Technologies certification practice exam gives you a golden opportunity to evaluate and strengthen your preparation with real-time scenario-based questions. Plus, by practicing real-time scenario-based questions, you will run into a variety of challenges that will push you to enhance your knowledge and skills.
Cisco 350-501 Sample Questions:
The service provider is serving hosts with two different multicast streams from source X and source Y. Source X is multicast group 224.0.0.0/8, and source Y is multicast group 226.0.0.0/8. Multicast source X should send its stream through bidirectional RP address 10.20.1.1, and multicast source Y should send its stream through RP address 10.20.2.1. Which configuration meets these requirements?
What is a characteristic of the YANG model?
Guidelines -
This is a lab item in which tasks will be performed on virtual devices.
* Refer to the Tasks tab to view the tasks for this lab item.
* Refer to the Topology tab to access the device console(s) and perform the tasks.
* Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
* All necessary preconfigurations have been applied.
* Do not change the enable password or hostname for any device.
* Save your configurations to NVRAM before moving to the next item.
* Click Next at the bottom of the screen to submit this lab and move to the next question.
* When Next is clicked, the lab closes and cannot be reopened.

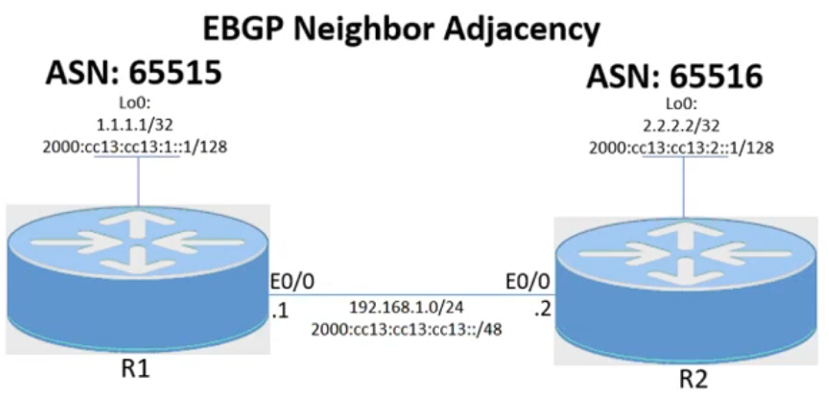

Topology:
Tasks -

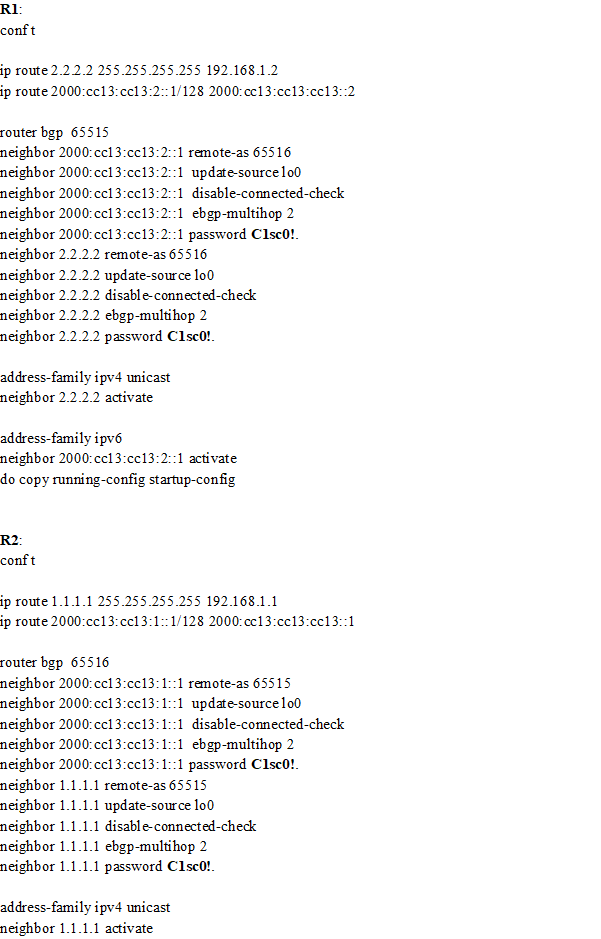

Configure the BGP routing protocol for R1 and R2 according to the topology to achieve these goals:
1. Configure EBGP neighbor adjacency for the IPv4 and IPv6 address family between R1 and R2 using Loopback0 IPv4 and IPv6 addresses. All BGP updates must come from the Loopback0 interface as the source. Do not use IGP routing protocols to complete this task.
2. Configure MD5 Authentication for the EBGP adjacency between R1 and R2. The password is clear text C1sc0!.

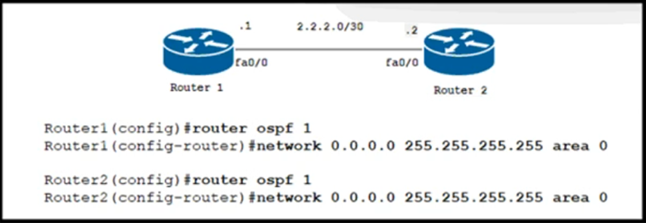

Refer to the exhibit.
A network engineer must configure an LDP neighborship between two newly installed routers that are located in two different offices. Router 1 is the core router in the network and it has already established OSPF adjacency with router 2. On router 1 and router 2. interface fa0/0 is configured for BFD. Which additional configuration must the engineer apply to the two devices to meet the requirement?
Which technology enables the addition of new wavelengths in a fiber-optic network?
Note: If there is any error in our Cisco 350-501 certification exam sample questions, please update us via email at support@certstime.com.
